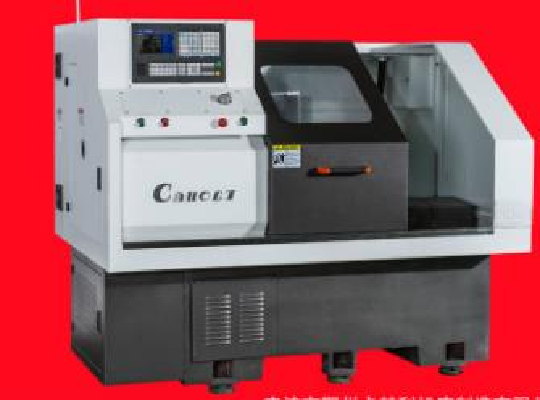

Heavy cutting high-precision high-speed CNC lathe

Heavy cutting high-precision high-speed CNC lathe

  • Min.Order Quantity: 1 Set
  • Supply Ability: 5 Sets per Month
  • Port: shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-09-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  caholi
  • Model Number:  650-1

good

  • Place of Origin:  China
  • Brand Name:  caholi
  • Model Number:  650-1

Processing capacity

Maximum turning diameter of bed

mm

Φ500

Maximum processing length

mm

1000

Maximum turning diameter on the plate

mm

Φ290

Spindle bore

mm

Φ88

Chuck size

in

10"(Φ250)

Spindle speed

rpm

(1)45-180rpm;(2)180-750rpm;(3)600-1600rpm

Main motor power

kw

7.5

X/Z

Z to travel

mm

1000

Maximum speed (servo)

mm/min

6000/7000

Drive motor torque (servo)

Nm

7/10


Number of tool


4

Tool rod cross section

mm

25x25

Hydraulic system (optional)

Nominal pressure

Mpa

2.5

capacity

L

25

Hydraulic pressure oil pump motor power

kw

0.75


tailstock taper sleeve


MT5

ilstock sleeve diameter

mm

Φ75

tailstock sleeve range

mm

150

Automatic lubrication pump motor power

w

5

Cooling pump motor power

w

90

precision

Repositioning precision X/Z axis

mm

0.001


Machine tool shape dimension

mm

         3000x1700x1800

Machine net weight

kg

2800
