- Place of Origin: China
- Brand Name: caholi

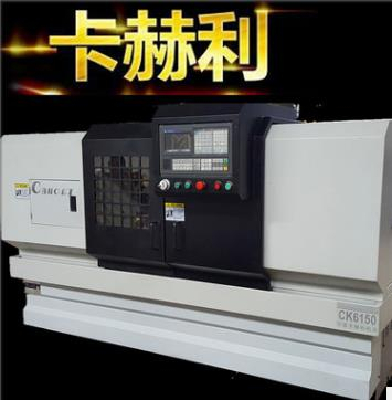

- Model Number: 6150
good
- Place of Origin: China
- Brand Name: caholi
- Model Number: 6150
Processing capacity | Maximum turning diameter of bed | mm | Φ500 |
Maximum processing length | mm | 1000 | |
Maximum turning diameter on the plate | mm | Φ290 | |
Spindle bore | mm | Φ88 | |
Chuck size | in | 10"(Φ250) | |
Spindle speed | rpm | （1）45-180rpm;(2)180-750rpm;(3）600-1600rpm | |
Main motor power | kw | 7.5 | |
X/Z | Z to travel | mm | 1000 |
Maximum speed (servo) | mm/min | 6000/7000 | |
Drive motor torque (servo) | Nm | 7/10 | |
Number of tool | 4 | ||
Tool rod cross section | mm | 25x25 | |
Hydraulic system (optional) | Nominal pressure | Mpa | 2.5 |
capacity | L | 25 | |
Hydraulic pressure oil pump motor power | kw | 0.75 | |
tailstock taper sleeve | MT5 | ||
ilstock sleeve diameter | mm | Φ75 | |
tailstock sleeve range | mm | 150 | |
Automatic lubrication pump motor power | w | 5 | |
Cooling pump motor power | w | 90 | |
precision | Repositioning precision X/Z axis | mm | 0.001 |
Machine tool shape dimension | mm | 3000x1700x1800 | |
Machine net weight | kg | 2800 |
